Water mist nozzles prove to be far more effective than Residential sprinklers in independent testing
IWMA Member RISE have carried out fire tests with Residential
WHEN SAFETY IS TAKEN SERIOUSLY
Low pressure water mist is the automatic fire suppression system of the future.
Prevent Systems researches, develops and distributes our own patented low pressure water mist technology.
We are a market leader with more than 25 years of experience within the field.
PRODUCTS
Automatic low pressure watermist fire suppression systems from Prevent Systems are designed for the fire protection of lives, buildings and/or specific equipment. The systems have been tested and documented for Residential and Domestic applications, as well as of Ordinary Hazard classes OH-1, OH-2 and OH-3. Please see respective datasheets for details and limitations.
The typical water mist system consists normally of these three main components:
- Watermist nozzles, which produces and distributes the watermist that suppresses a fire in an activated area.
- A pump-set to increase the water pressure from the town mains or water tank.
- Pipes & fittings to distribute the water to the nozzles.
NOZZLES
Nozzles from Prevent Systems are available both as ceiling and wall models. The nozzles are approved for Residential and Ordinary Hazard applications OH-1, OH-2 and OH-3. Please see the respective datasheet for details and limitations.
Prev2exp
For light and ordinary hazard applications, including parking car garages, offices, schools, retail and general public space areas in hospitals, hotels, care home institutions, etc.
- Type of nozzle: Upright ceiling
- Max coverage area: 16m2
- Water pressure: 8.4 bar
For more information on Prev2exp, please download the datasheet or contact
Prevent Systems, +47 612 60909, post@prevent-systems.no
Prev2up
For residential and domestic applications including homes, care institutions, schools and preschools, apartment buildings and sleeping areas in hospitals, hotels etc.
- Type of nozzle: Standing
- Max coverage area: 16m2
- Water pressure: 8.4 bar
For more information on Prev2up, please download the datasheet or contact
Prevent Systems, +47 612 60909, post@prevent-systems.no
Prev3exp
For residential and domestic applications including homes, care institutions, apartment buildings, and sleeping areas in hospitals, hotels etc.
- Type of nozzle: Pendent ceiling
- Maximum coverage area: 16m2
- Water pressure: 5.2 bar
For more information on Prev3exp, please download the datasheet or contact
Prevent Systems, +47 612 60909, post@prevent-systems.no
Prev3con
For residential and domestic applications including homes, care institutions, apartment buildings, and sleeping areas in hospitals, hotels etc.
- Type of nozzle: Pendant ceiling
- Maximum coverage area: 16m2
- Water pressure: 5.2 bar
For more information on Prev3con please download the datasheet, or contact
Prevent Systems, +47 612 60909, post@prevent-systems.no
Prev4sw w/rosette
For residential and domestic applications including homes, care institutions, apartment buildings, and sleeping areas in hospitals, hotels etc.
- Type of nozzle: Sidewall
- Maximum coverage area: 16m2
- Water pressure: 8 bar
For more information on Prev4sw please download the datasheet, or contact
Prevent Systems, +47 612 60909, post@prevent-systems.no
Prev4sw
For residential and domestic applications including homes, care institutions, apartment buildings, and sleeping areas in hospitals, hotels etc.
- Type of nozzle: Sidewall
- Max coverage area: 16m2
- Water pressure: 8 bar
For more information on Prev4sw, download the datasheet here, or please contact Prevent Systems, +47 612 60909 , post@prevent-systems.no
Prev5exp20
For residential and domestic applications including homes, care institutions, apartment buildings, and sleeping areas in hospitals, hotels etc.
- Type of nozzle: Pendent ceiling
- Max coverage area: 20,25m2
- Water pressure: 2.2 bar
For more information on Prev5exp20, please download the data sheet or contact Prevent Systems, +47 612 60909, post@prevent-systems.no
Prev5exp
For residential and domestic applications including homes, care institutions, apartment buildings, and sleeping areas in hospitals, hotels etc.
- Type of nozzle: Pendant ceiling
- Max coverage area: 16m2
- Water pressure: 2.4 bar
For more information on Prev5exp, please download the datasheet or contact
Prevent Systems, +47 612 60909, post@prevent-systems.no
Tool for Prev3con – Prew4sw
For more information, please contact Prevent Systems, +47 612 60909 , post@prevent-systems.no
PIPING SYSTEMS
Water mist solutions from Prevent Systems are installed with corrosion-free piping systems, including Stainless steel pressfittings, RedPipe PP-R, CPVC and PrevPex, a customised water leakage proof and replaceable pipe-in-pipe system.
Stainless Steel Pressfittings system
Pressfittings piping system in stainless steel 316L quality, VdS certified.
For more information, updated pricelist and to order, please contact us at: +47 612 60909, post@prevent-systems.no
PrevPex
PrevPex is a leakage-proof and replaceable pipe-in-pipe system for use in Prevent Systems low pressure water mist systems, based on JRG Sanipex™ manufactured by Georg Fischer AG. The system is especially well suited to be embedded in concrete.
For more information on PrevPex, updated pricelist and to order, please contact Prevent Systems, +47 612 60909, post@prevent-systems.no
RedPipe
A corrosion-free pipe system made of reinforced fiberglass PP-R, VdS and LPCB certified.
For more information, updated pricing and to order, please contact us at: +47 612 60909, post@prevent-systems.no
PUMP-SETS
Our pump-sets are developed in partnership with Grundfos, and are manufactured and delivered according to current standards.
Pump-sets
Our pump-sets are developed in partnership with Grundfos and we offer both CM and CR-sets in accordance to current standards.
For more information, pricing and to order our pump-sets, please contact
Prevent Systems, +47 612 60909, post@prevent-systems.no
WATERMIST SYSTEMS
Like having your own personal firefighter. Our water mist systems are highly efficient and developed in partnership with fire advisors and British Fire & Rescue Service.
UltraGuard
Benefits of UltraGuard
- Personal Protection System
- Accredited Certification to LPS 1655
- Fully portable, self-contained system
- Simple keypad operations
- Monitored smoke alarms for rapid detection
- Fire control within minutes of discharge
- 3 day battery back-up in case of mains failure
- Wireless auto dialer for activation alerts to your preferred nominee
- Minimal damage to property when activated
For more info and orders outside of Norway, Sweden and the UK see the following websites
https://www.bengtsson-consulting.com/ultra-guard/
The Danish Hjælpemiddelbasen:
https://hmi-basen.dk/r11x.asp?linkinfo=63964
Eastin.eu:
http://www.eastin.eu/en/searches/Products/Detail/database-hj%C3%A6lpemiddelbasen/id-63964
Certifications
LPCB Certificate – 15/12/2016
First company with LPCB certified and listed water mist nozzles.
BS 8458, INSTA 900-3 – 10/05/2017
BRE Global Test Report
BS- DD 8458, INSTA 900-3 – 10/03/2011
The first company to pass fire testing to BS and INSTA Residential and domestic water mist test.
BS 8489-7 Low hazard occupancies, OH-1 – 19/01/2017
The first company to have passed the BS 8489-7 Category 3 fire tests.
SP fire test report – Underground parking garages – 11/01/2013
Fire testing parking garages, Ordinary hazard, OH-2
BS 9252 – 23/08/2011
Fire testing sidewall nozzles to the Residential and domestic standard BS 9252
IMO Res. 265 (84) – 04/01/2010
International Maritime Organization (IMO) test methods for Public Space
REFERences
RESIDENCES
The water mist solutions offer safety and security for its’ residents.
The solutions are for instance found in 500 apartments at The Bread Factory (Brødfabrikken) in Oslo, Norway.
Apartment buildings
- Solheimstunet, Lørenskog
- Gartnerboligen, Skullerud, Oslo
- Solhøgda, Lillehammer
- Vannkunsten, Oslo
- The Lodge, Trysil
- Goaleitet, Stavanger
- Lørenpynten, Oslo
- Grønstad gate 53, Lillehammer
- BoKlok moduler – Skanska/IKEA samarbeid
- Lørenporten, Oslo
- Vikenstranda, Gjøvik
- Hammermo, Lillehammer
- Bjørklundgården, Lillehammer
- Stallgata 4, Askim
- Kongens gate 10, Oslo
- Dobloug gården, Elverum
- Kjøita 22, Kristiansand
- Topdalsveien, Kristiansand
- Storgata 63, Harstad
- Ingeborgs have, Hokksund
- Jægersborg, Stange
- Sandnessjøen Terrasse, Sandnessjøen
- Storgata 37, Lillehammer
- Griniveien 2, Oslo
- Centrumsgården, Brandbu
- Torgveien 6, Brandbu
- Kvartal 27, Gjøvik
- Ersgaard, Lillehammer
- Tovengtunet, Askim
Townhomes/Row housing
- Bergens gata 9, Oslo
- Bygdøy Alle 60, Oslo
- Ebbels gate 3, Oslo
- Grønlandsleiret 19, Oslo
- Home Keysers gate, Oslo
- Olaf Ryes plass 2, Oslo
- Osterhaus gate 14, Oslo
- Osterhaus gate 4, Oslo
- Refsenveien, Halden
- Riddervolds gate 10, Oslo
- Thereses gate 20, Oslo
- Thor Olsens gate 4, Oslo
- Torggata 20, Oslo
- Seilduksgata 26, Oslo
Brødfabrikken, Løren in Oslo, Norway, will accommodate approx. 500 new apartments and office premises. The project is developed by Stor-Oslo Eiendom AS.
Nybyen Økern in Oslo is a new residential property with about 400 apartments. The apartments will be within walking distance to the new Økern Centre with shopping, movie theatres and an aqua park.
HOSPITALS AND CARE FACILITIES
Extinguishing with water mist makes the following clean- up faster and ensures minimal interruption of daily operations.
Health and rehab centers
- Brøttum og Lismarka omsorgsboliger, Ringsaker kommune
- Engeli, Åsnes
- Fiskebekkveien, Stavanger
- Fossegård bokollektiv, Raufoss
- Furubakken Aldersboliger, Gjøvik
- Givraveien, Vinstra, Nord-Fron i Oppland
- Hattfjelldal Mottak, Nordland
- Høyenhall, Hønefoss i Buskerud
- Kleberget, Moss
- Lillehammer Helsehus
- Skogli Helse- og rehabiliteringssenter, Lillehammer
- Veigstad, Skjåk kommune
- Ålgård, Gjesdal kommune
- Åveien omsorgsbolig, Grong kommune
HOTELS
Solutions from Prevent Systems are discrete and merge nicely with architecture and interior.
For instance, the solutions are found in the Crowne Plaza Hotel in London.
- Granavolden Gjæstgiveri, Gran, Oppland
- Hotell Utsikten, Geiranger
- Krossbu, Lom kommune, Oppland
- Leirvassbu, Lom kommune, Oppland
- Mesnabakken, Mesnali, Hedmark
- Snøheim turisthytte, Trøndelag
- Sognefjellshytta, Lom kommune, Oppland
- Øyer Fjellstue på Lisætra, Oppland

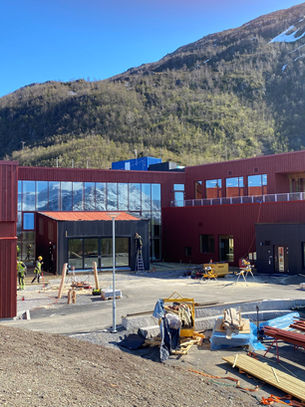

SCHOOLS AND INSTITUTIONS
Low pressure water mist ensures efficient fire protection of schools, kindergartens and other institutions. The solutions are for instance found in a school called Møllergata Skole in Oslo, Norway.
Schools
- Biri planteskole, Biri, Oppland
- Gjøvik kommunale musikkskole
- Lysaker skole, Bærum
Preschools
- Byggeklossen barnehage, Harstad
- Doktor Holms vei barnehage, Oslo
- Gilja barnehage, Gjesdal
- Langhus barnehage, Ski kommune
- Skogfaret barnehage, Oslo
- Tårnsvalen barnehager, Oslo
- Ødegården barnehage, Hurum
COMMERCIAL PREMISES
Low pressure water mist ensures efficient fire protection of schools, kindergartens and other institutions. The solutions are for instance found in a school called Møllergata Skole in Oslo, Norway.
Retail and offices
- Autoveien 1, Harstad
- Biri planteskole, Oppland
- Bøndenes Hus, Askim
- Coop Obs, Mosjøen
- Dombås senter
- Fåberggata 126, Lillehammer
- Jotunheimen Sport, Vågå
- Mølla Senter, Brumunddal
- Sandviksbodene 77 i Bergen
Restaurants
- La Dolce Vita Ristorante & Pizzeria, Brumunddal
- Vulkan mathallen, Oslo
Production facilities
- Euroskilt AS, Vingrom
- Synnøve Finden, Alvdal
- Terina, Lillehammer
BUILDINGS WORTH PRESERVING
Water mist solutions are easy to install and ensure safe protection.
For instance, the solutions are found in Windsor Castle in the United Kingdom.
Churches
- Aker kirke, Oslo
- Brandval kirke, Kongsvinger
- Fåberg kirke, Lillehammer
- Fåvang kirke, Oppland
- Geiranger Kirke, Stranda i Møre og Romsdal
- Gravberget kirke, Våler kommune, Hedmark
- Grue Finnskog kirke, Grue kommune, Hedmark
- Hesby kirke, Finnøy kommune, Rogaland
- Oppstad kirke, Sør-Odal, Hedmark
- Rødenes kirke, Marker kommune, Østfold
- Rømskog kirke, Rømskog kommune, Østfold
- Sandøy kirke, Sandøy kommune, Møre og Romsdal
- Strøm kirke, Sør-Odal, Hedmark
- Talgje kirke, Finnøy kommune, Rogaland
- Ullern kirke, Sør-Odal, Hedmark
- Vinger kirke, Kongsvinger
Castles
- Akershus festning, Oslo
- Windsor Castle, Windsor, England
Museums and community centers
- Aulestad, Gausdal, Oppland
- Frogner Hovedgård, Oslo
- Grytting Gard, Sør Fron, Oppland
- Høgtun Aktivitetssenter, Marnardal kommune, Vest-Agder
- Minne Kultursenter, Åseral kommune, Vest Agder
- Observatoriet, Univ. i Oslo
- Portåsen kultursenter, Mjøndalen, Buskerud
- Randsfjordmuseene, Dokka, Oppland
- Storgata/Sentrum, Lillehammer
- Vigelandsmuseet, Oslo
Windsor Castle is the world’s largest inhabited castle. The castle has been home to 39 English monarchs and contains a large number of irreplaceable objects of art.
WATERMIST
GENERAL INFORMATION ON WATERMIST
Watermist is defined as water droplets less than 1mm in diameter.
How does it work?
Water from the mains or a tank, flows through distribution pipework and is “atomized” to many very fine droplets, as it passes through a water mist nozzle. Many tiny water droplets create a greater total surface area per liter of water.
The smaller droplets absorb the heat from the fire, and lowers the temperature quickly. The fine droplets in and around the fire «boils» over from water to steam, or water vapor, which is an inert gas. This conversion to water vapor, dramatically increases the volume of water, up by almost 1700 times. The water vapor displaces the oxygen near the fire, and suffocates it.
The droplets that are not converted to water vapor, will wet the surrounding area and prevent the fire from spreading.
Effectively, the fire is attacked from all sides of the Fire Triangle – Heat, Fuel and Oxygen.
BENEFITS OF LOW PRESSURE WATER MIST
Exploiting water more efficiently has its’ obvious benefits;
- The systems demand less water, smaller water intake or tank
- Smaller dimensions on pipes and fittings
- Easier and faster installation and replacement
- Discrete and space-saving design in corrosion-free materials
- Low maintenance costs due to high quality corrosion free components
- Effective fire suppression solution that attacks all three sides of the fire-triangle simultaneously
- Non-toxic fire extinguishing with reduced water consumption
- Minimal interruption of the daily operation in case of fire
The International Water Mist Association has more on how water mist works: iwma.net
Easy and fast installation - Discrete and space-saving design.
Since our systems require less water, the water intake or tank can be smaller, and all pipes and fittings are smaller. This results in easier and space-saving installations, a greater architectural advantage, which is important to builders, architects, contractors and owners.
Documented and certified
Prevent Systems water mist systems are fire tested in full scale fires at accredited fire laboratories according to international standards, with full documentation for applications to be protected. Our water mist nozzles were the first to be certified by LPCB and listed on RedookLive.com
Respects the environment
Low pressure water mist technology use small components, which require less amount of material to manufacture, and more eco-friendly to transport and store. All components are of high corrosion free quality, designed to last the life of the building without considerable need for replacement and maintenance.
FAQ
Here you will find answers to the most frequently asked questions.
Like sprinklers, there is no FG approval for the system. Our low-pressure Water Mist Systems are designed, installed and controlled by FG approved enterprises, according to TEK 17 and current standards.
YES! INSTA 900-1 and -2 for residential sprinklers will be replaced by NS-EN 16925:2018+NA:2019 and NS-EN 12259-14. Water Mist for residential application may still be designed as described in INSTA 900-1, if the requirements of INSTA 900-3 is fulfilled. See Standard Norway’s web page for more info.
NEWS
Video
Prevent Systems AS
Prevent Systems AS – intro in English
LOW Pressure watermist nozzles
Low Pressure Watermist in Residential House Demonstration
ABOUT US
OUR HISTORY
INNOVATION SINCE 1987
The history about our innovative solutions goes back to 1987. Back then our current Head of Technology started developing water mist nozzles for fire suppression.
The systems were originally developed for the maritime sector and are found on board cruise liners, ferries and yachts all over the world. When founding Prevent Systems AS in 2007, the focus was shifted to the land-based market.
Our innovative solutions have made us a market-leader within research, development and distribution of automatic fire suppression systems with low pressure water mist.
Prevent Systems was the first company to meet the test requirements for the Nordic residential water mist standard, INSTA 900-3, and the British water mist standards for residential and domestic, BS 8458, and for low hazard occupancies, BS 8489. We were also the first company to obtain LPCB certification for water mist nozzles, listed on RedBookLive.com.
More than 25 years of research and development experience enables us to deliver innovative patented fire protection technology to the fast growing residential market, as well as for light- and ordinary hazard applications. This includes apartment buildings, care institutions, hospitals, hotels, office buildings, schools parking garages and cultural heritage buildings.
The best installers and distributors are ready to help you
Previous
Next
Employees
Board members
Erling Mengshoel Chairman of the Board - International Sales
Lars Tvete Styremedlem
Jan Schøtt-Petersen Member of the Board
Bjørn Rafael Hansen Silent partner
Thor Svegården Member of the board
Contact us
Prevent Systems AS
Fåberggata 126
N-2615 Lillehammer
Norway
Phone: +47 61 26 09 09
Fax: +47 61 26 02 65
E-mail: post@prevent-systems.no
You can also write directly to us here
PREVENT SYSTEMS AS | FÅBERGGATA 126, N-2615 LILLEHAMMER, NORWAY | PHONE: +47 612 60 909 | FAKS: +47 612 602 65 | E-MAIL: POST@PREVENT-SYSTEMS.NO
